Техника соединения

KAN-therm PP Green polypropylene elements are assembled by a polyfusion muff-welding process; in this method both surfaces to be joined, the external pipe surface and the internal surface of the fitting muff are heated up simultaneously at 260 0C. For heating (plasticization) an electric heater with a heating plate with exchangeable (for every diameter) covered in PTFE heating cover plates of is used. Depending on the diameter this heating takes from 5 to 90 seconds. After that time heated elements are taken out of heating plates and the pipe is immediately inserted into the fitting muff (no rotation movement allowed!) to a marked depth. Then the process of mutual diffusion and mixing of particles of both elements takes place.

With this welding process all the welding parameters must be maintained (warming up time, joining time and cooling time and the welding depth).

Техника соединения – муфтовая сварка (20-125 мм)

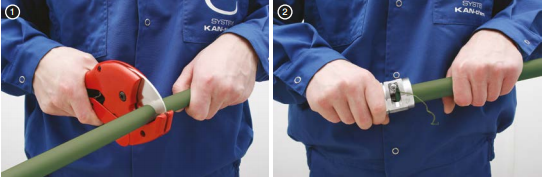

1. Отрезать трубу ножницами.

2. Инструментом для зачистки труб удалить верхний слой РР и средний слой алюминия.

Техника соединения

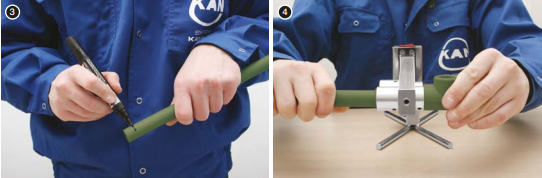

3. Обозначить глубину сварки.

4. Нагреть трубу и соединитель.

Техника соединения

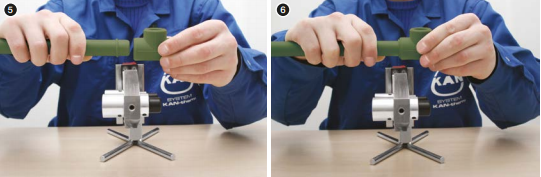

5. Соединить элементы.

6. Зафиксировать и охладить соединение.

Техника соединения



Another technique of assembly is electrofusion welding. A fitting with implanted metal coils is placed around two ends of pipes to be joined, and current is passed through the coils. Resistive heating of the coils melts small amounts of the pipe and fitting, and upon solidification, a connection is formed.

Техника соединения - электромуфтовая сварка (20–200 мм)

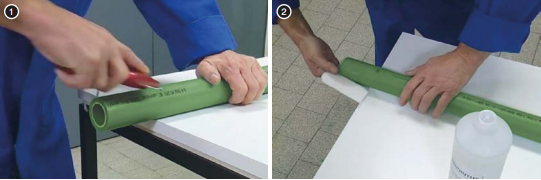

1. Очистить поверхость трубы от загрязнений с помощью скребка.

2. Обезжирить поверхность трубы спиртом.

Техника соединения

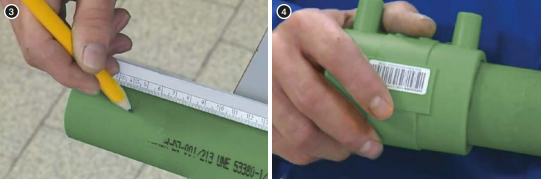

3. Обозначить глубину сварки.

4. Вставить трубу в электросварную муфту.

Техника соединения

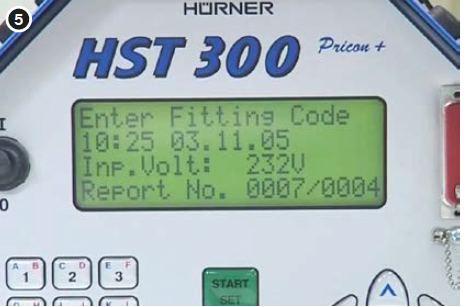

5. Программирование электромуфтового сварочного аппарата через сканер штрих-кода (электромуфтовый
сварочный аппарат автоматически корректирует параметры сварки).

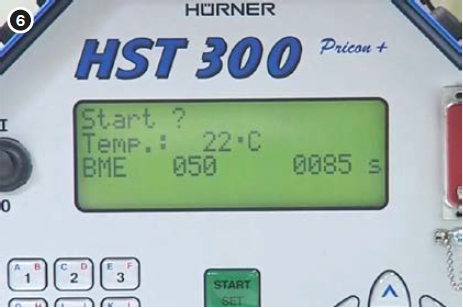

6. Начало процесса сварки - не проворачивать элементы соединения и не подвергать их механическим воздействиям.
